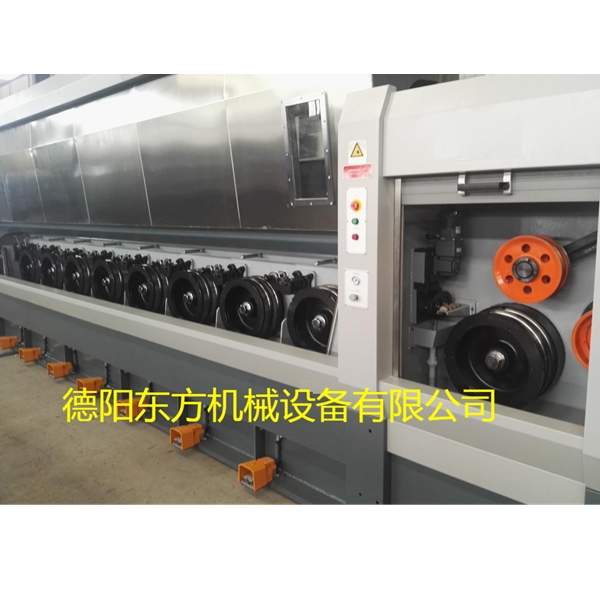

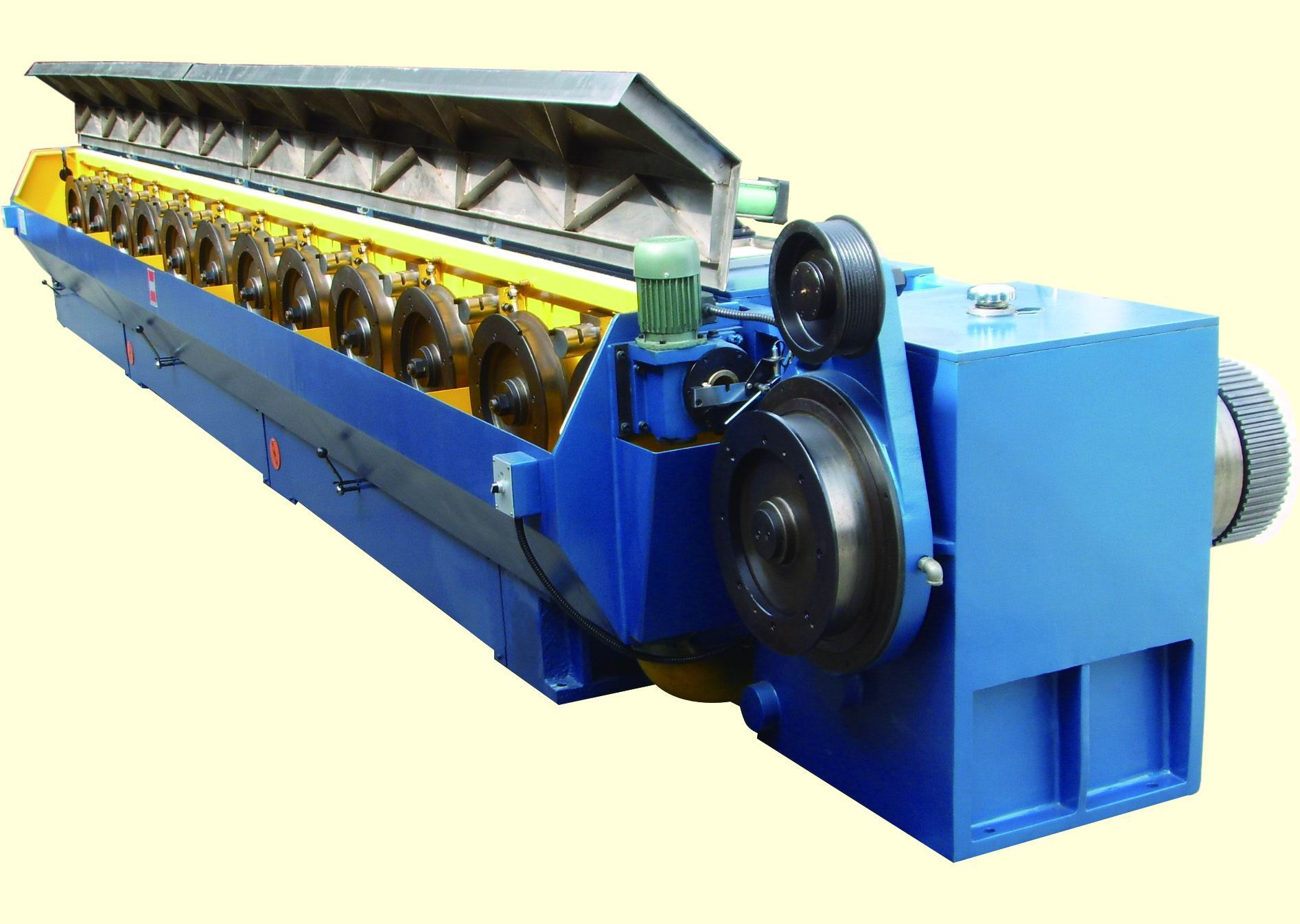

HLC—450/13型連續退火銅大拉 Continuous Annealing Copper Rod Breakdown Machine 本機供電線電纜廠拉制φ1.2～φ3.5的圓銅線，可拉制硬銅線和連續退火軟銅線。本機拉線鼓輪采用串列式排列，定速輪和其它12道拉線鼓輪分別由二臺直流電機拖動，可進行快速換模，極大地方便了操作。 This machine is made for producing φ1.2～φ3.5 round-shaped copper wire for the wire and cable factory.the drawing capstan are arranged in tandem ,finish capstan and other 12 drawing capstans are seperately dragged by 2 DC machines.This can change the mould fast and make the operation simpler to a large extent. 電控系統采用西門子裝置，數字通訊，全線PLC控制，人機界面。 The electrical control is installed with the original Siemens control system，all lines are PLC controlled and human-computer interface 本機收線可配置雙盤自動收線裝置及成圈下線裝置。 The Drawing of this machine can be equipped with dual auto take-up device and coiler take-up device.
一、設備簡述 brief introduction to the equipment
本機供電線電纜廠拉制φ1.2～φ3.5的圓銅線，可拉制硬銅線和連續退火軟銅線。本機拉線鼓輪采用串列式排列，定速輪和其它12道拉線鼓輪分別由二臺直流電機拖動，可進行快速換模，極大地方便了操作。
This machine is made for producing φ1.2～φ3.5 round-shaped copper wire for the wire and cable factory.the drawing capstan are arranged in tandem ,finish capstan and other 12 drawing capstans are seperately dragged by 2 DC machines.This can change the mould fast and make the operation simpler to a large extent.
電控系統采用西門子裝置，數字通訊，全線PLC控制，人機界面。
The electrical control is installed with the original Siemens control system，all lines are PLC controlled and human-computer interface
本機收線可配置雙盤自動收線裝置及成圈下線裝置。
The Drawing of this machine can be equipped with dual auto take-up device and coiler take-up device.
二、主要技術參數main technical parameters
1、進線直徑inline wire Dia. max. φ8 mm
2、出線直徑 outlet wire Dia. max. φ1.2~φ3.5 mm
3、拉線、退火速度 drawing,annealing spped max 25 m/s
4、拉伸道次 number of drafts max 13 道
5、拉線鼓輪直徑（等直徑）
Dia. of drawing capstan (equal Dia.) φ450 mm
6、最大模具尺寸 Max. mould size φ43×35 mm
7、成圈收線容量 coiler take-up volume 2 t
收線范圍 take-up range φ3.5～φ1.6 mm
收線速度 take-up speed max. 15 m/s
8、雙盤收線盤規格 type of dual take-up PND630 PND500
9、最大退火電流 Max.annealing curent 6000 A
10、最大退火電壓 Max.annealing voltage 55 V
11、拉線主電機 drawing host
型號 type Z4-315-12
功率 power 280 kw
12、定速輪電機 electric machine of finish capstan
型號 type Z4-200-21
功率 power 75 kw
13、雙盤收線電機 dual take-up motor
型號 type Z4-160-31
功率 power 30x2 kw
14、主機潤滑油泵 oil pump of host lubrication
CBZ-50 50L/min 3 kw
15、儲線裝置儲線長度
Wire length in accumulator max. 約5.2 m
16、儲線輪最大行程 max. stroke of accumulator ring 840 mm
17、使用壓縮空氣壓力（氣源用戶自理）pressure of required compressed air
(the air source are resolved by the buyer) 0.4～0.6 Mpa
18、電蒸汽爐加熱功率 lectric vapour heating power 9 kw
三、設備組成equipment comprises:
1、放線架 pay-off stand 1套
2、拉線機主機（包括主電機、定速輪電機） 1套
host of wire drawing (including electric host and finish capstan electric host)
3、連續退火裝置 1套
Continuous annealing device
4、儲線裝置 accumulator 1套

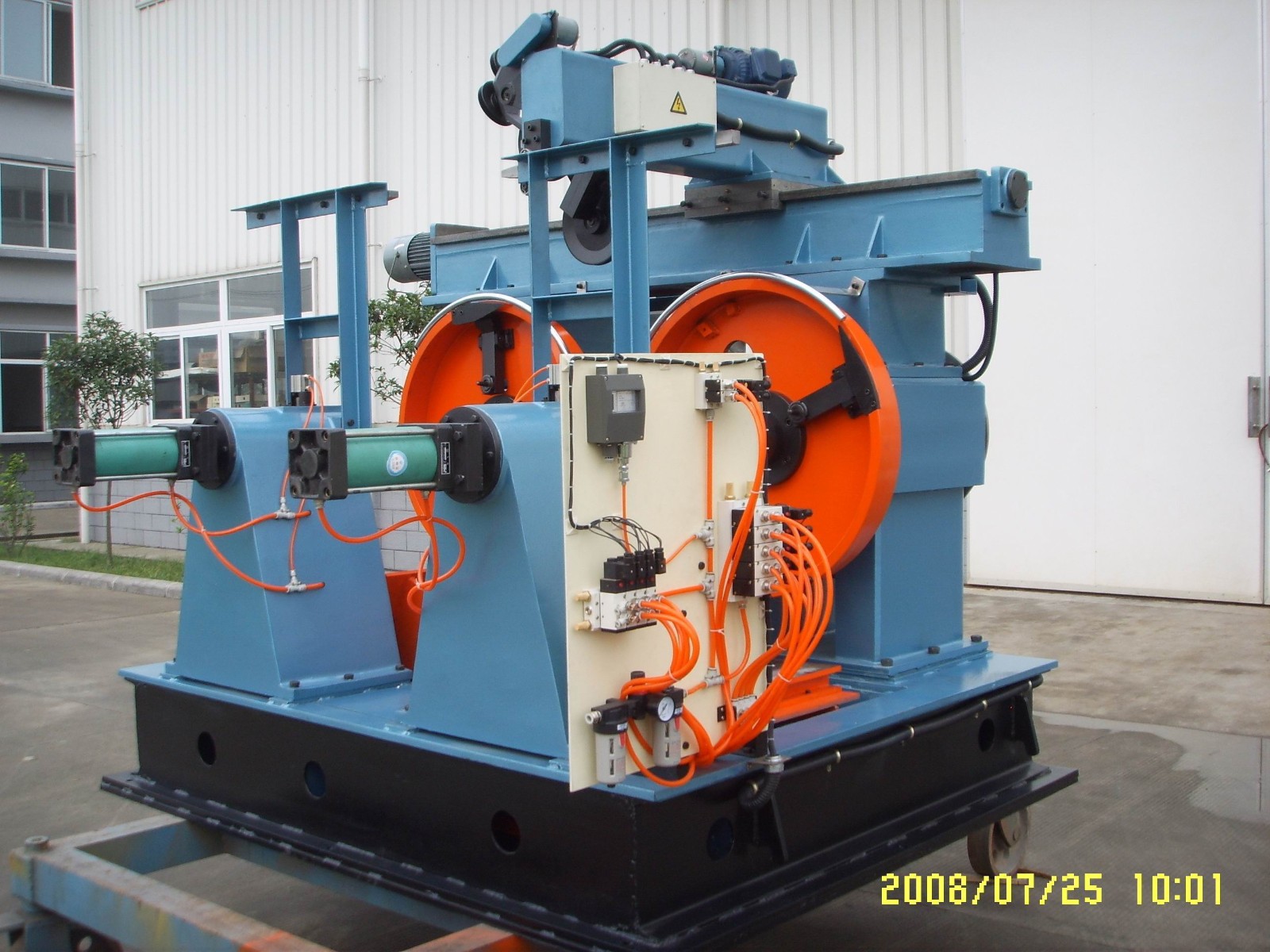

5、雙盤收線裝置 dual take-up device 1套

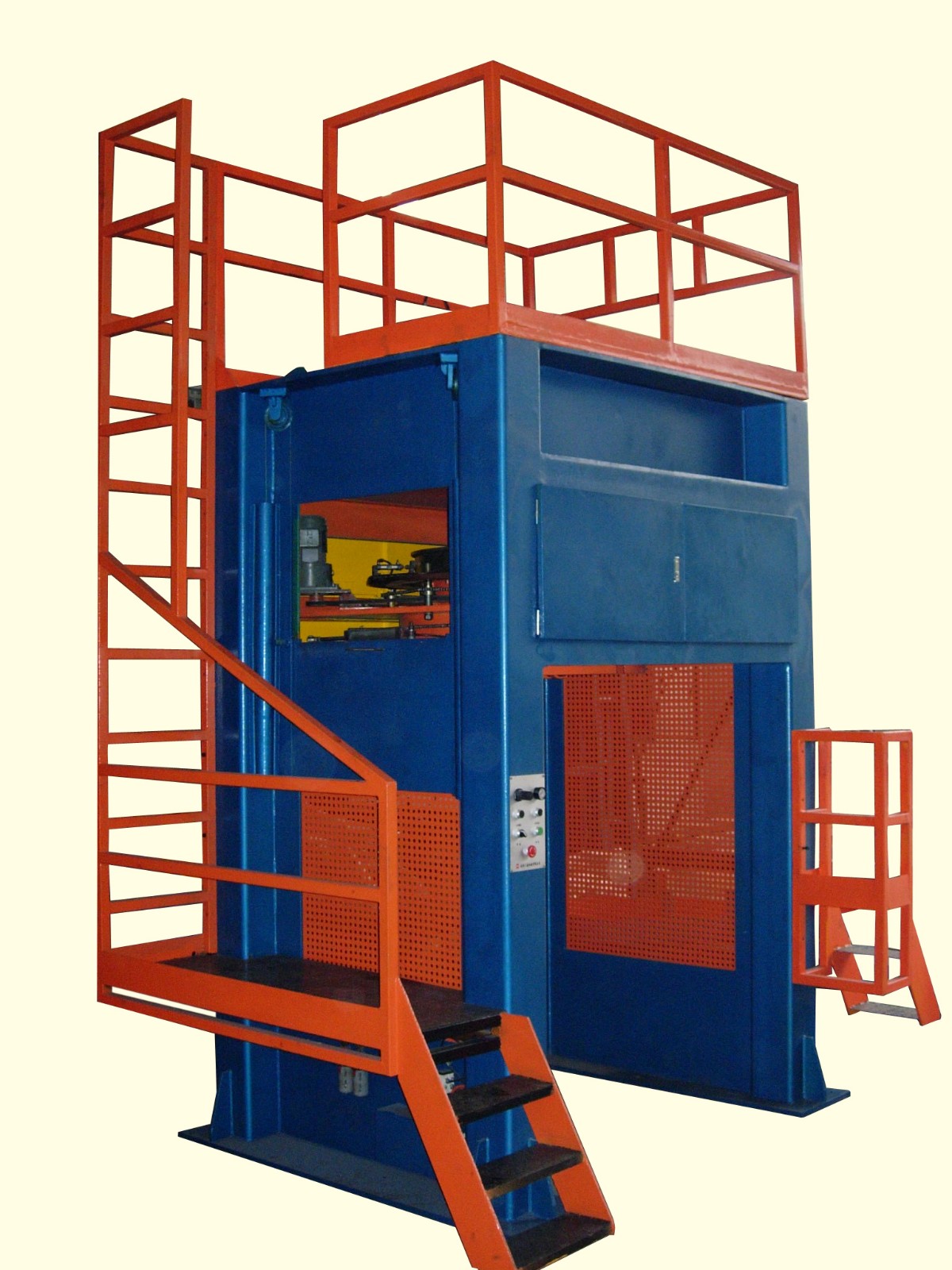

6、成圈收線裝置 coiler take-up deivce 1套
7、拉線主機潤滑裝置 drawing host lubrication device 1套
8、軋頭穿模機 wire pointer and stripper 1套
9、電氣控制柜 electric control cabinet 1套
10、電蒸爐 electric vapour furnace 1套
四、設備技術特點characteristics of equipment
1、拉線牙箱整體鑄造，與分體拼結結構相比，剛性大大提高，不會(huì )變形，密封性好，不會(huì )產生漏水、漏油等現象。
Xx is founded in whole*,compare with being founded seperately,the xx has been enhanced and it’s not easily transfigurable,it’s leak-free from water, oil etc.
2、拉線機采用高性能斜齒輪傳動，全方位加工。高速檔齒輪齒面淬火磨齒。拉線鼓輪采用中碳鋼基體，表面噴涂碳化鎢。
Wire stretcher is equipped with high-qualified inclining gear transmission，omnidirectionally processed. High-gear is quenched and the drawing capstan is made of medium carbon steel matrix with tungsten carbide sprayed on the surface
3、采用半浸沒式潤滑冷卻方式，確保線材和拉線模有效的冷卻和潤滑
Cooling adoption of semi-dipping lubrication ensures the wire and the mould being cooled and lubricatd efficiently.
4、退火裝置設計為傾斜式，降低了高度，操作方便。專門設計的風道使退火輪后部變得十分簡潔，方便了日常維護保養。
The annealing device is inclination type and it’s easy to operate because of the lowered height. The design of airway makes the back of fire-ring more simple and convenient for maintenace.
5、雙盤收線設計先進可靠，有關傳動部分均進行動平衡校正，采用氣動系統及電氣通訊方式控制換盤，穩定性好，捕捉成功率高。由于采用氣動控制，工作場地整潔干凈，解決了選用液壓系統可能產生的漏油現象。
Dual take-up design is advanced and transmission parts are dynamic balancing emendated,using a air-started system and electric communication to control the changer is good for stablity and a high success rate of capture.because of the air-starting control,the workplace can be tidy and clean ,this solved the oil-leaking problem of liquid pressure system.
6、拉線主機、定速輪、成圈收線及雙盤收線電機均采用原裝西門子控制器，全線PLC控制，采用進口人機界面，能方便地發出操作指令，察看整機運行狀況，調整工藝參數，并具有故障診斷功能。
Drawing host, finish capstan,coiling take-up and dual drawing motor are all imported from Siemens,all line PLC controlled with a human-computer interface.This makes the command and adjust of running situationa and parameters easy,and it is error-detection possible.
7、定速輪內設有水冷或風冷機構，可有效降低拉線時定速輪溫度。
Finish capstan has a water-cooling or wind-cooling device,can cool of the capstan while drawing.
